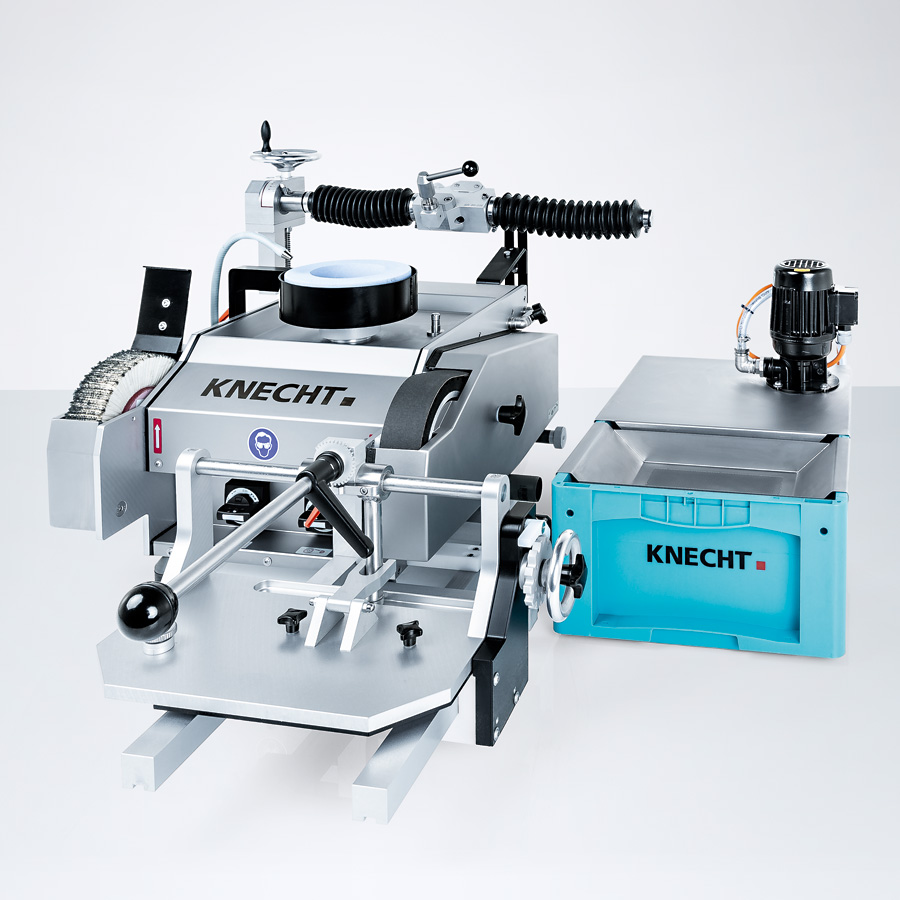

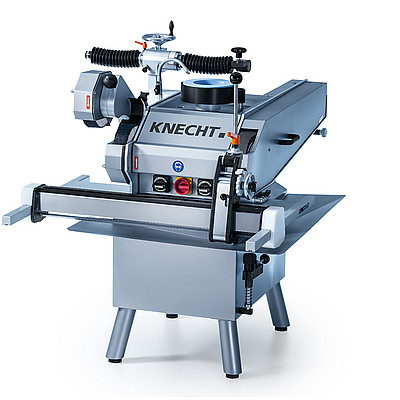

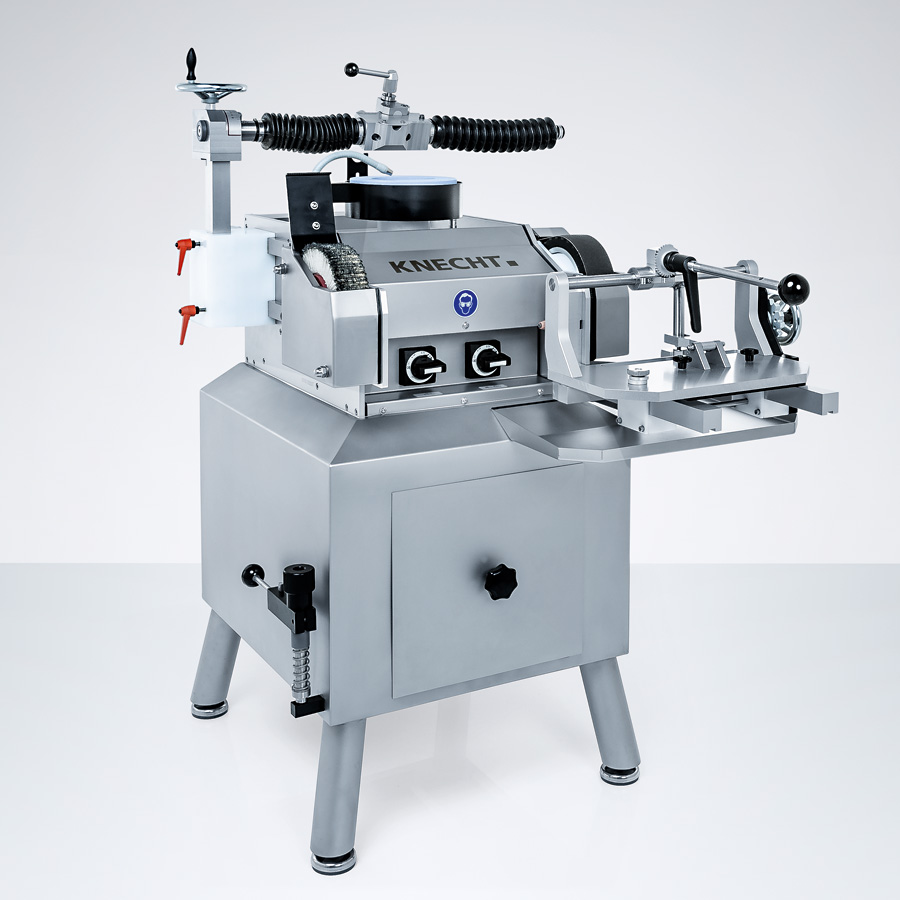

The Universal Wet-Sharpening Machine S 200 is a universal grinding machine for all conventional cutter knives as well as circular knives, hand knives and other cutting tools.
Universal Wet-Sharpening Machine S 200
Cutter knives and circular knives are clamped at all times in attachments during grinding and are therefore guided safely and precisely. The result is a long service life of the cutting edges. For the operators, this means a high degree of safety with minimum effort.
A coolant pump supplies the individual grinding stations with water. The cutting edges cannot overheat when grinding.
The advantages at a glance

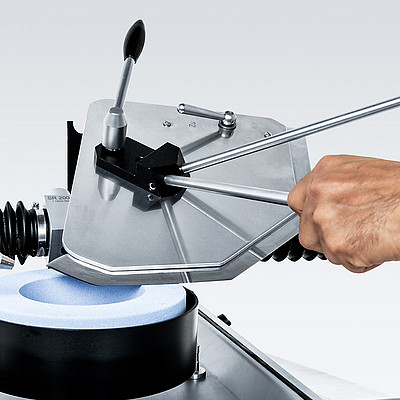

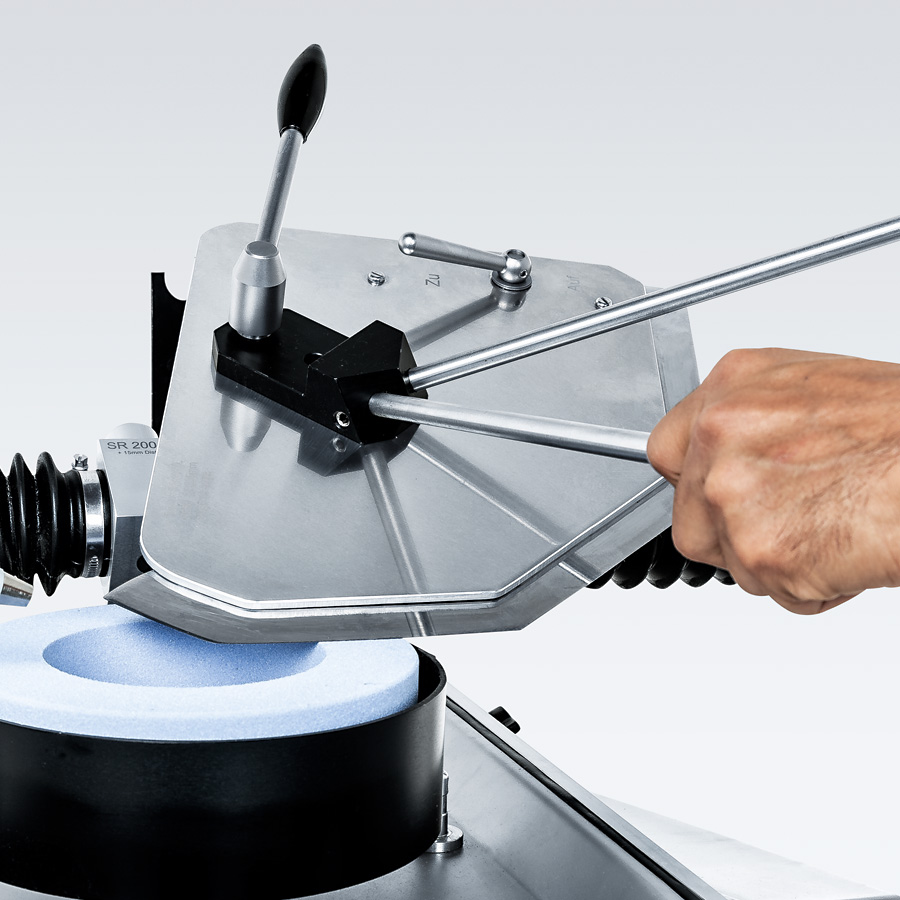

Cup grinding wheel
The cup grinding wheel removes a lot of material very quickly. It is used to easily repair badly damaged cutting tools. Chamfered edges, e.g. on circular knives, are ground on the cup grinding wheel. The required grinding angle is continuously adjustable.

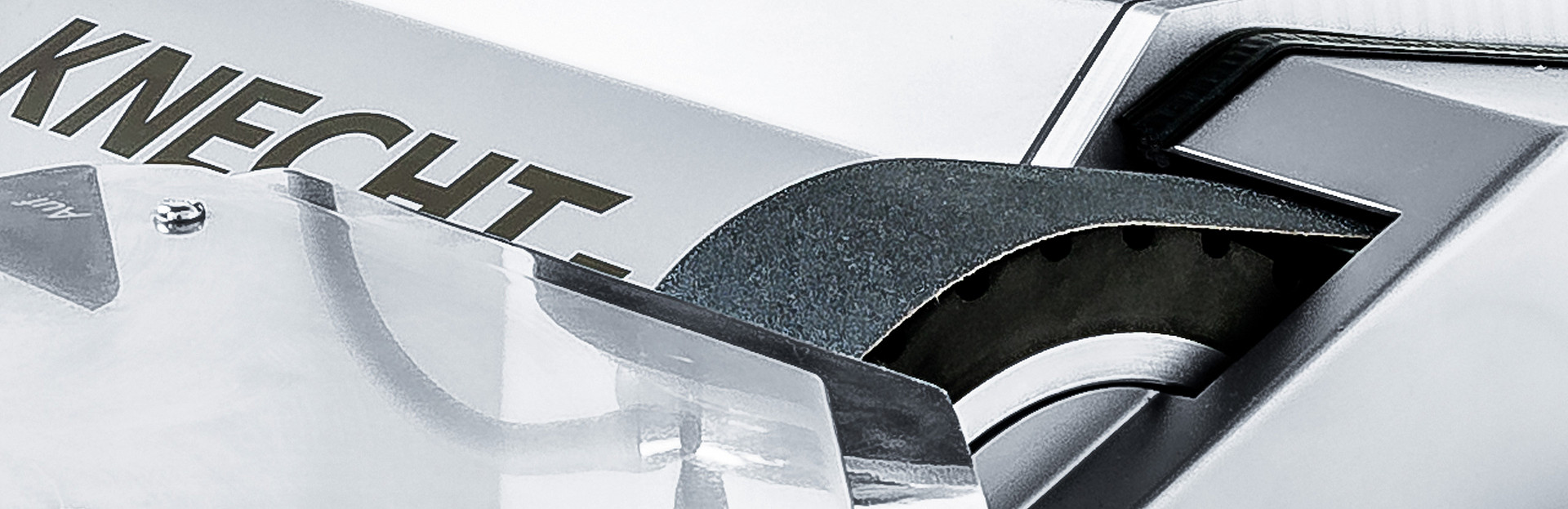

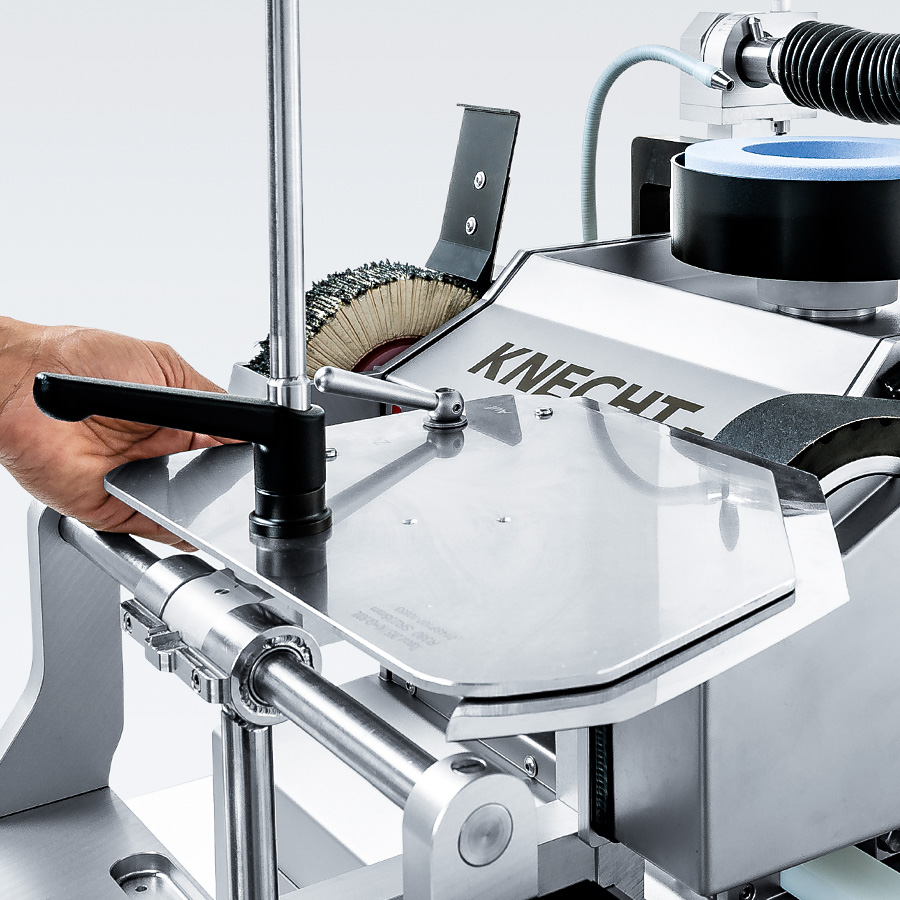

Wet-grinding belt
The wet-grinding belt ensures a very fine cutting tool surface. The profiled rubber contact wheel applies the exact amount of grinding resistance to the knife.

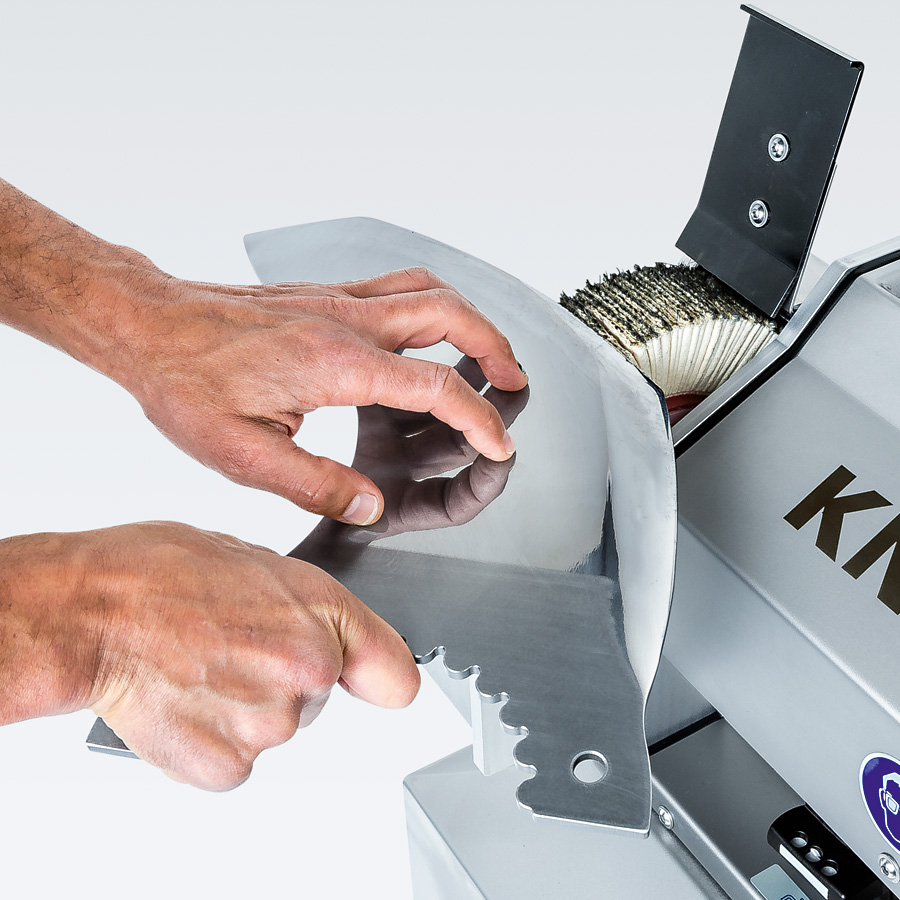

Finned brush
Deburring and polishing of the knives is carried out on the finned brush. The precisely adjusted peripheral speed and the ideally coordinated brush resistance compensate handling errors.

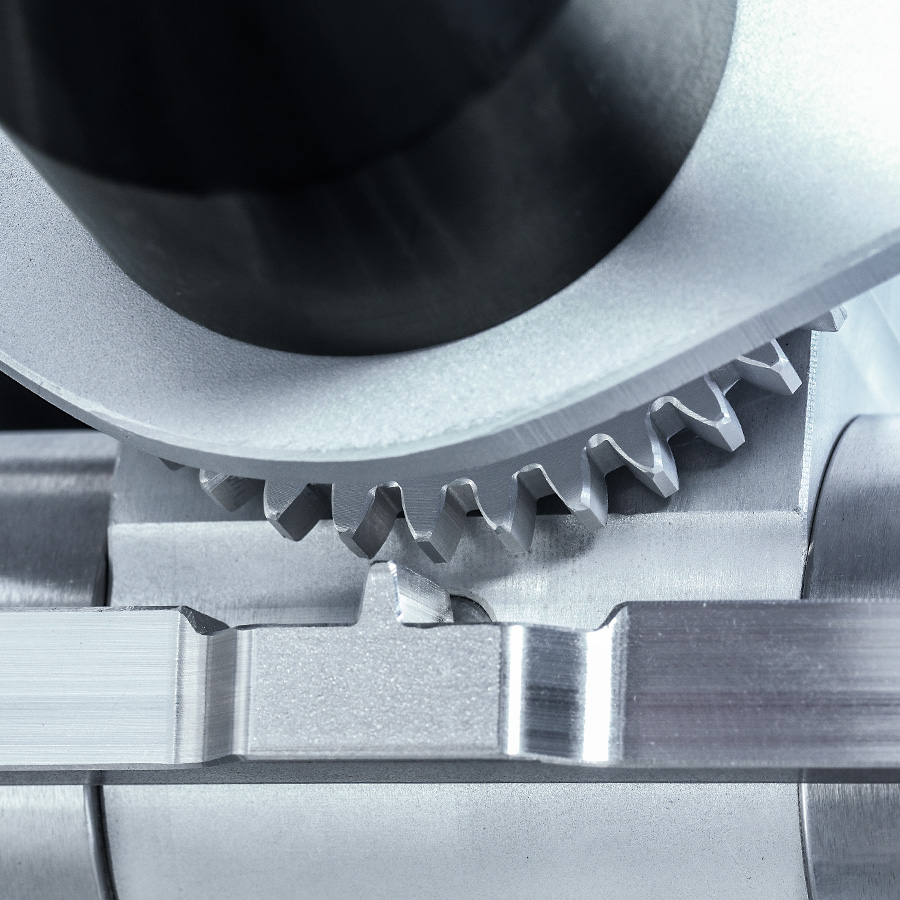

Function disk
Thanks to the patented function disk, the machine is converted in seconds from sharpening sickle shaped cutter knives to linear shaped cutter knives. Thanks to the patented function disk, the machine is converted in seconds from sharpening sickle shaped cutter knives to linear shaped cutter knives. When changing the knife, a locking mechanism prevents the knife from slewing out unintentionally. It can be changed absolute safe

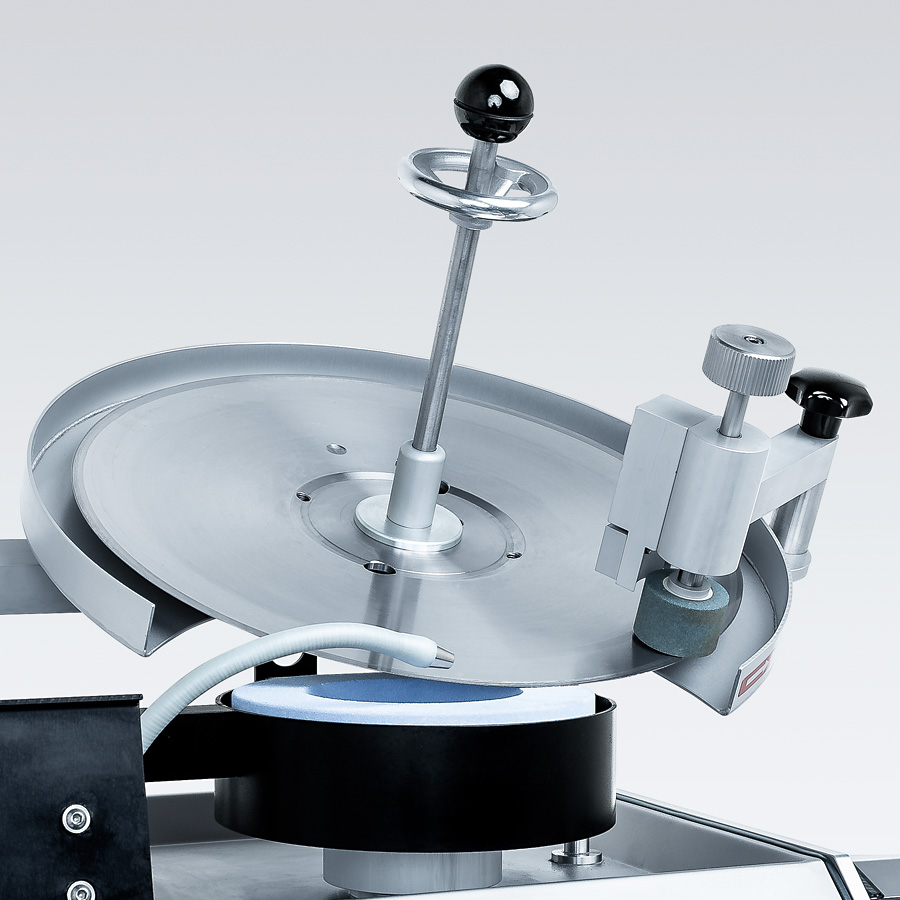

Circular knives
Circular knives with diameters from 80 – 470 mm are sharpened and deburred on the optionally available circular knife grinding units.

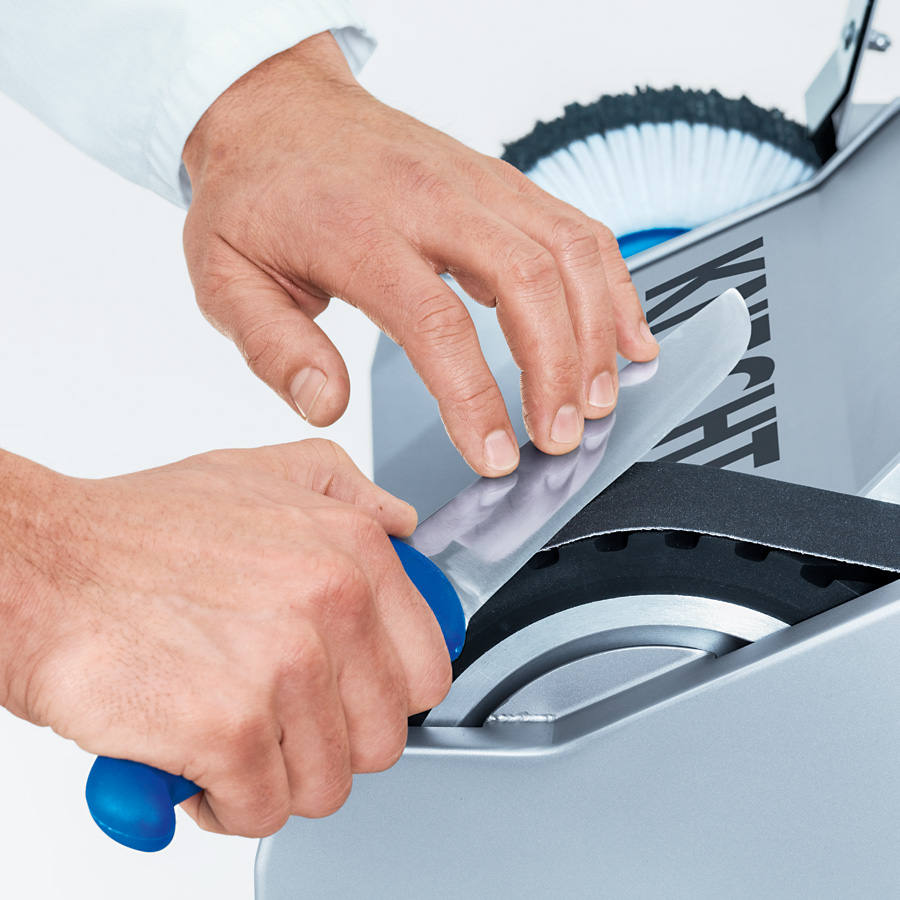

Hand knives
Hand knives are sharpened manually on the wet-grinding belt and deburred and polished on the finned brush.

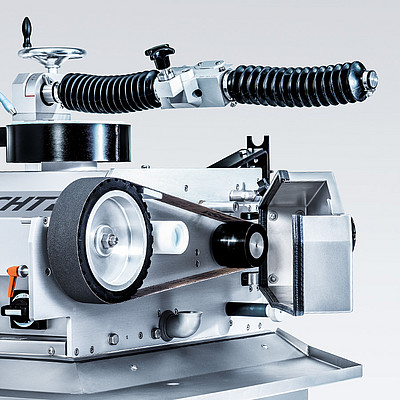

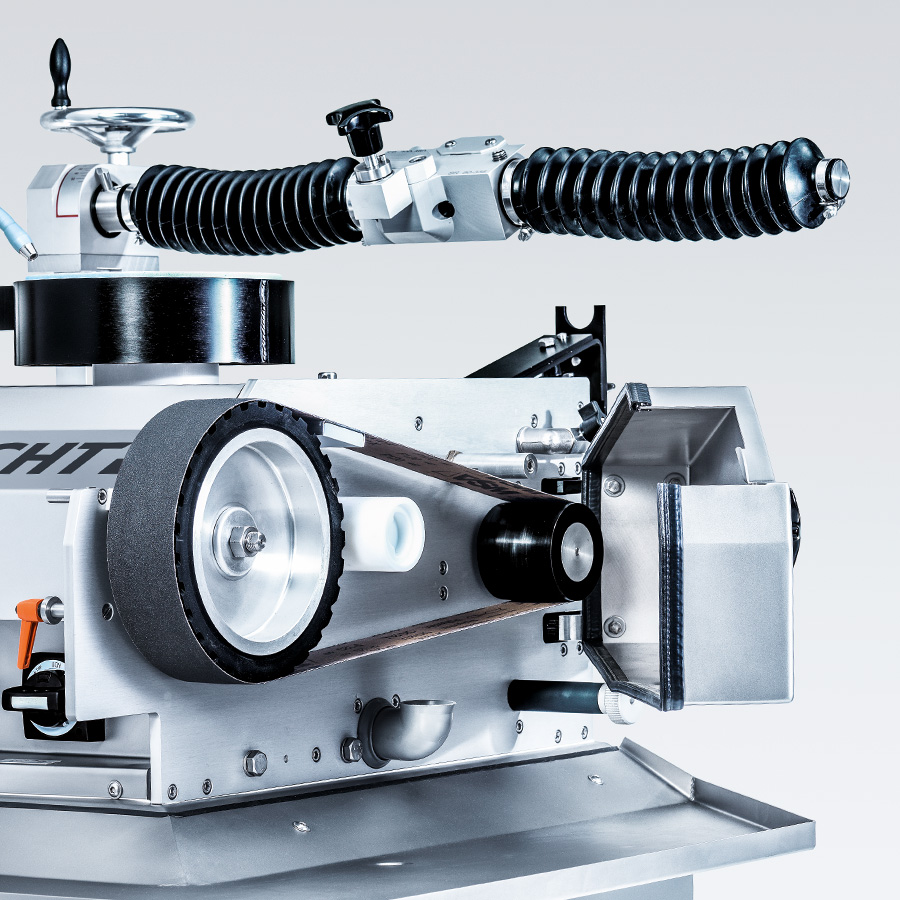

Grinding belt replacement
The drives are locked when the belt guard is open. The tension on the grinding belt is relieved and it can be replaced.

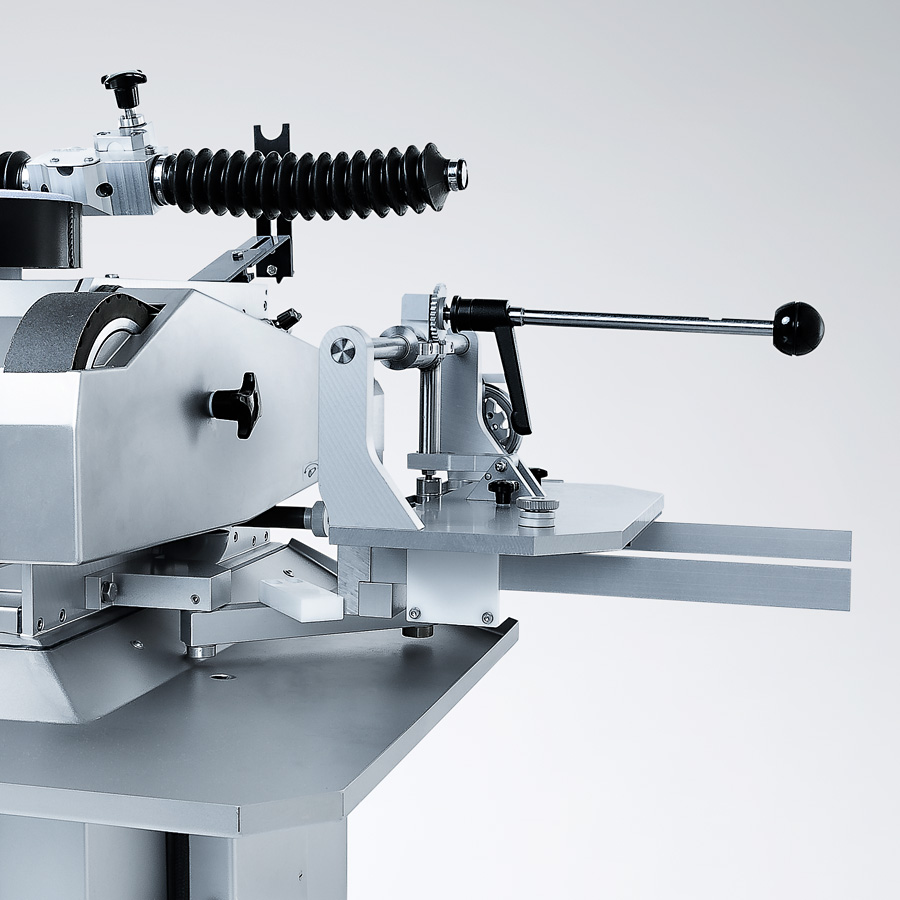

Swiveling belt grinding device
If the wet grinding belt is used for free-hand-grinding, the belt grinding device can be easily and quickly swung to the side.See what's going on
