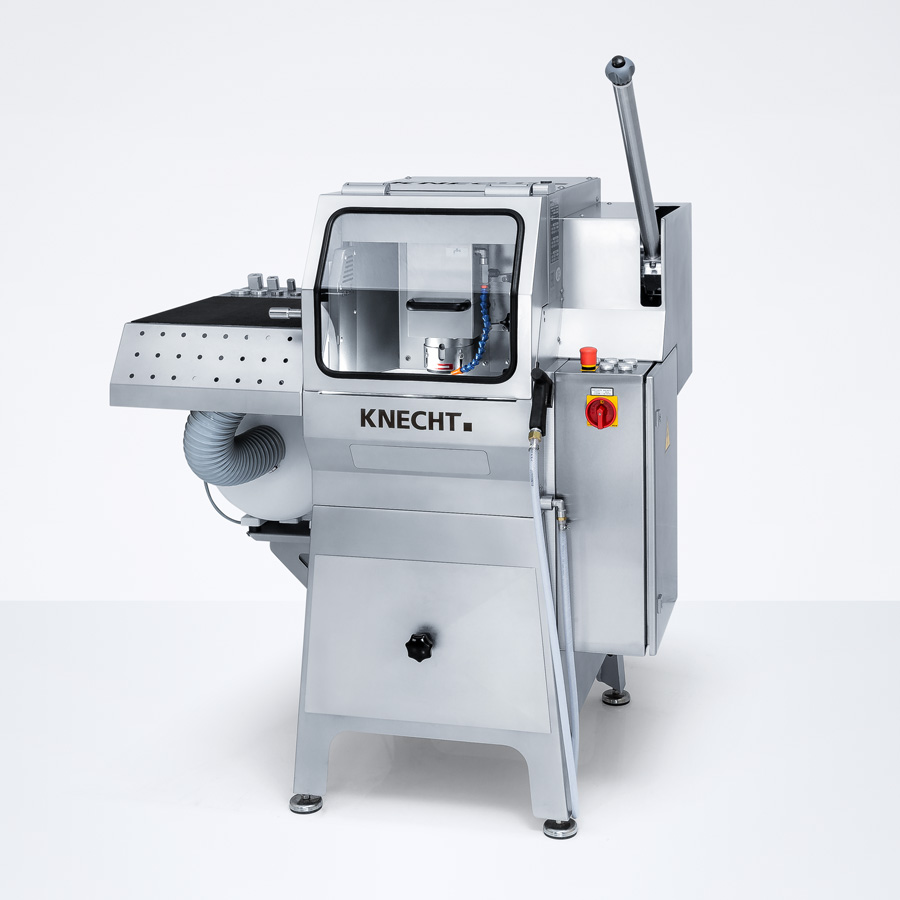

Surface Grinding Machine W 200 II

The W 200 II sharpens mincer plates and knives, cutting sets of inline grinders, as well as cutting sets of emulsifiers with a diameter up to 200 mm. Plane-parallelism is two hundredths of a millimeter.

The strong drive motor combined with the heavy design of the W 200 II provides a high degree of material removal. Thus, even very worn workpieces can obtain an exact surface again in a short amount of time.

Perfect flatness


Shortest downtimes


High chipping performance


If the grinding unit is moved up after the grinding process, all drives, including the coolant supply, stop. The same happens when opening the working room during grinding. To start all drives, it is only necessary to press one button. All systems can be started separately, if required.

The centralized lubricating points make the W 200 II particularly maintenance-friendly.

The advantages at a glance

Perfect grinding results

Perfect grinding results

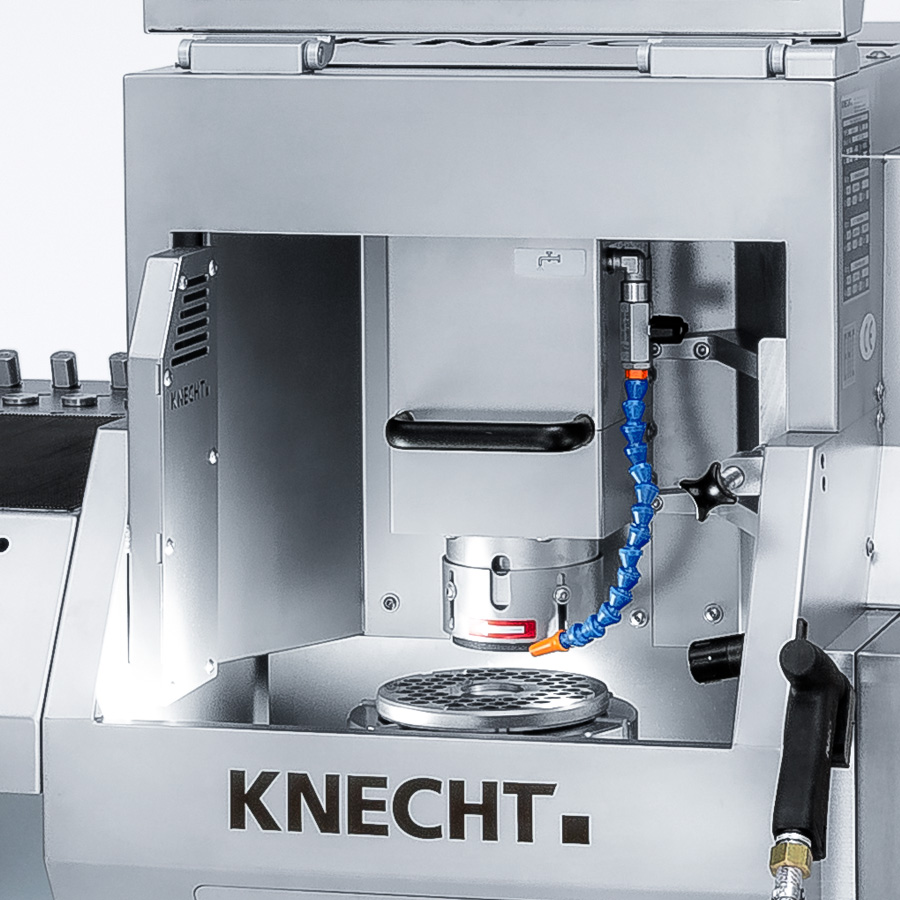

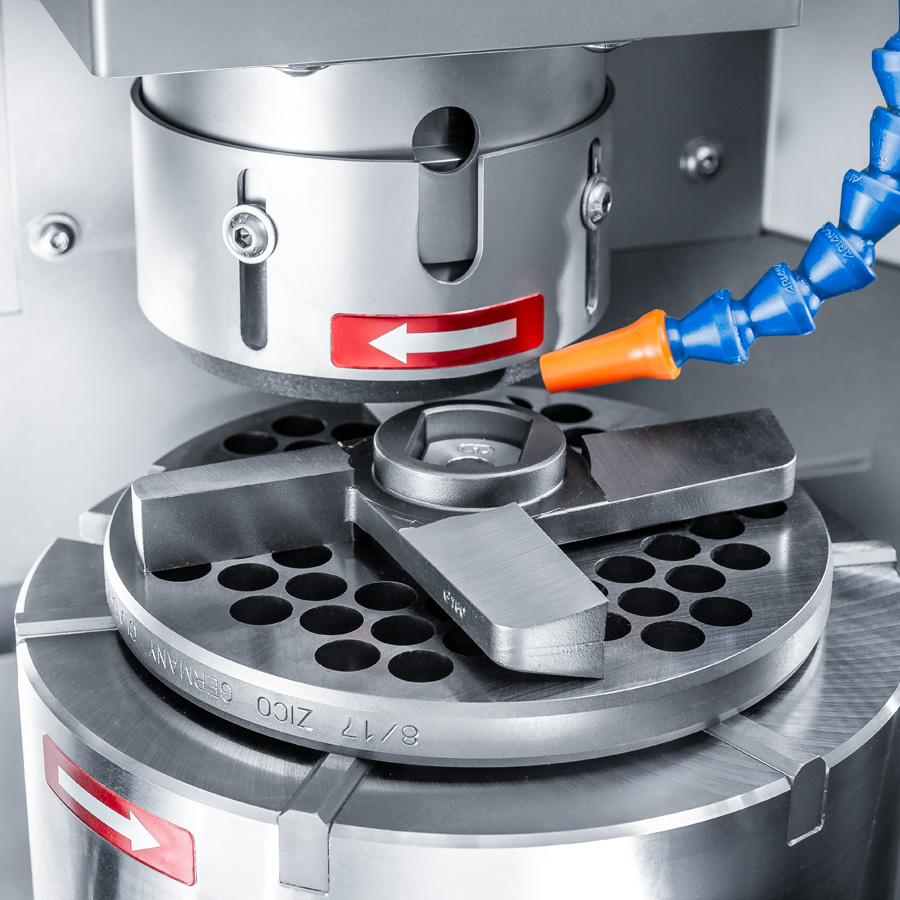

The workpieces are fixed onto the rotary table by centering pieces. Using the 6-bar support, uneven workpieces also seat in a solid position on the rotary table. This guarantees very fast, accurate grinding results. The removed material is quickly lead away. The rotary table stays clean. This minimizes cleaning times when grinding.
Precise to the smallest detail

Precise to the smallest detail

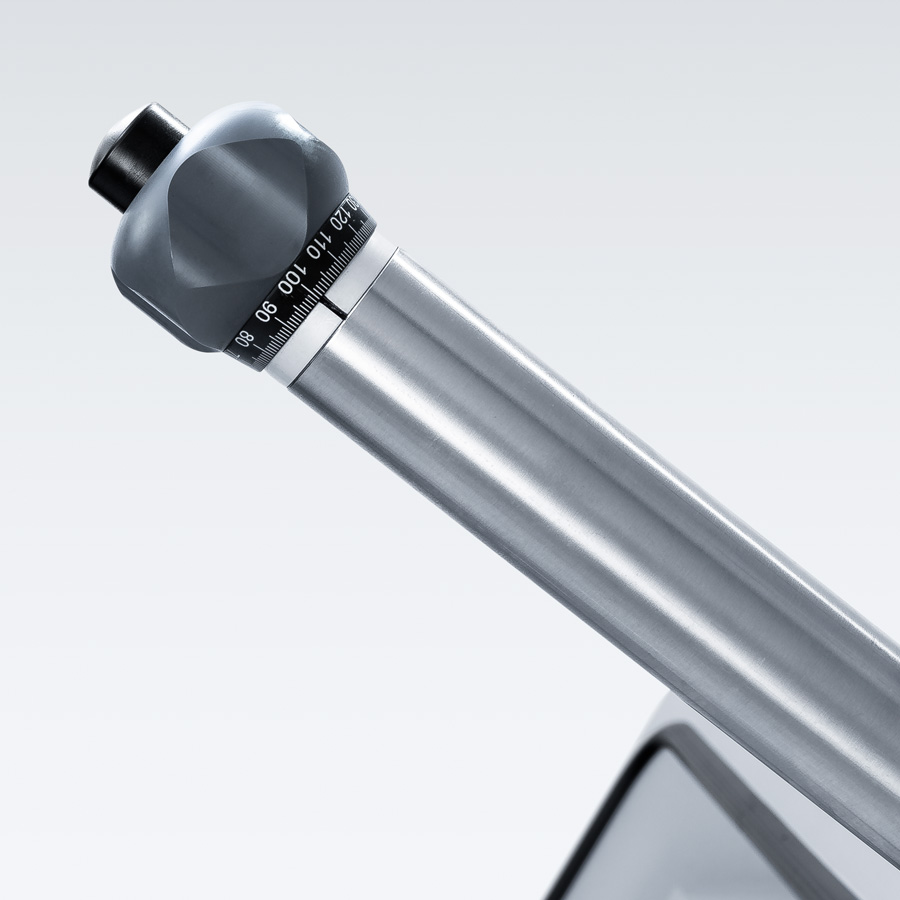

The feed lever for combined operation of rapid feed and fine feed allows the grinding wheel to approach the workpiece very quickly with minimum effort. Nonproductive times are reduced to a minimum by this technology. An electromagnetic brake enables very high feed precision. This ensures, that even smallest quantities of material can be removed.

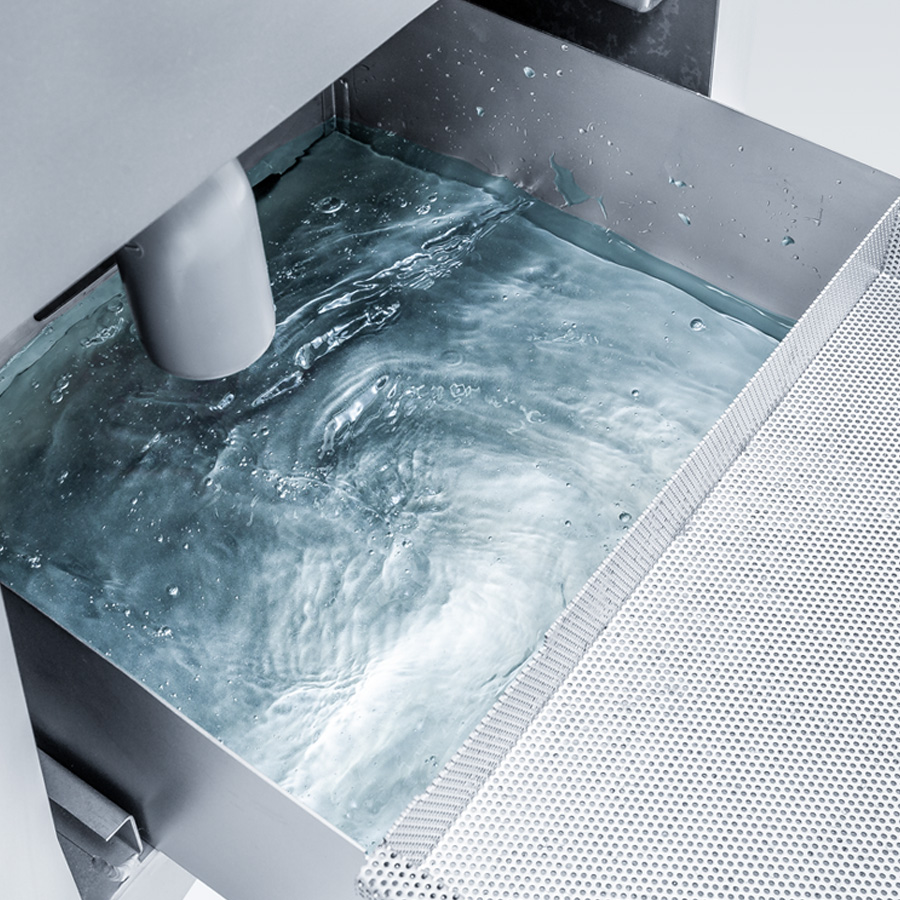

Coolant unit

Coolant unit

The W 200 II coolant circuit ensures continuous cooling of the workpieces. They are reliably prevented from overheating. The coolant unit provides a volume of 35 l.

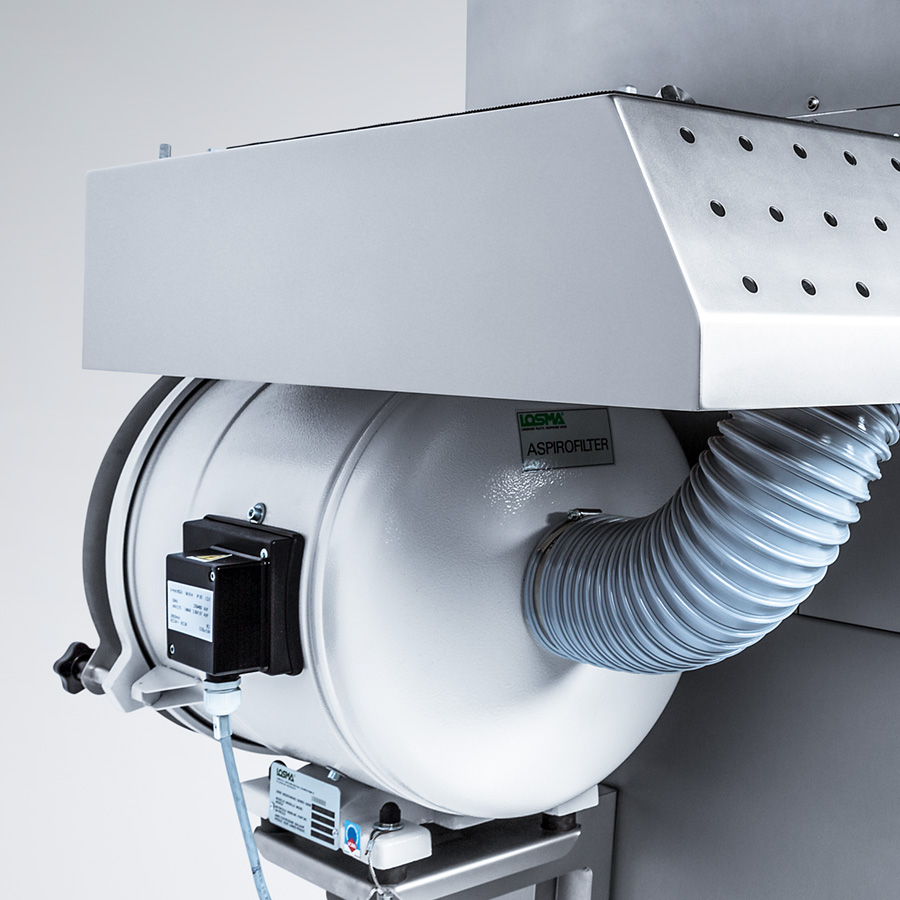

Suction unit

Suction unit

The optional suction unit removes floating particles from the encapsulated workroom. This enables visibility during the grinding process. The operators respiratory system will be protected.
